How to Choose the Right HPMC Viscosity Grade for Construction Projects?

Are you struggling with tiles sliding down walls or self-leveling mortars that don't flow? These frustrating issues often stem from using the wrong HPMC viscosity grade¹. Many contractors waste money on inappropriate products based on bad advice.

The key to selecting the right HPMC viscosity grade¹ is finding the perfect balance between anti-sagging properties² and workability. Different applications require specific viscosity ranges - high viscosity for wall tiling, medium for skim coats, and low viscosity for self-leveling compounds³.

I've seen countless construction projects fail because someone believed the myth that "higher viscosity is always better." This couldn't be further from the truth. Let me share what I've learned after years of helping customers choose the right HPMC grade for their specific needs.

Why Is HPMC Viscosity So Critical for Your Construction Project?

Pain: Using the wrong viscosity grade can lead to expensive rework, wasted materials, and frustrated workers struggling with either too runny or too sticky mixtures.

HPMC viscosity directly affects how your mixture behaves during application. It controls water retention, adhesion, and workability⁴ - all crucial properties for successful application. The right viscosity ensures your material stays where you put it while remaining easy to work with.

The viscosity of HPMC is measured in millipascal-seconds (mPa·s) or centipoise (cP), with common grades ranging from 100 to 200,000 mPa·s. This measurement indicates how thick or thin your mixture will be when properly dissolved.

When selecting HPMC viscosity, you need to consider three main factors:

1. Application method: Spraying requires lower viscosity than troweling
2. Vertical vs. horizontal use: Vertical applications need higher anti-sag properties
3. Layer thickness: Thicker layers generally need higher viscosity for stability

Here's a simplified breakdown of common applications and their ideal viscosity ranges:

I remember visiting a customer who complained about their tile adhesive. They had switched to a higher viscosity HPMC thinking it would improve performance, but their installation crews were exhausted from trying to work with the overly sticky mixture. We adjusted to a more moderate viscosity that still prevented sagging but improved workability, solving their problem immediately.

How Should You Match HPMC Viscosity to Specific Construction Applications?

Pain: Choosing the wrong viscosity can be costly - tiles fall off walls, self-leveling compounds don't self-level, and workers complain about difficult application.

For wall tiling, especially with large format tiles, use 150,000-200,000 mPa·s HPMC to prevent sliding. For skim coats and plasters, 70,000-100,000 mPa·s provides adequate adhesion without becoming too sticky. Self-leveling mortars require very low viscosity (400-5,000 mPa·s) to achieve proper flow.

When it comes to specific applications, the differences in required viscosity can be dramatic. Let me break down the major construction applications and explain exactly why they need such different HPMC viscosity grades.

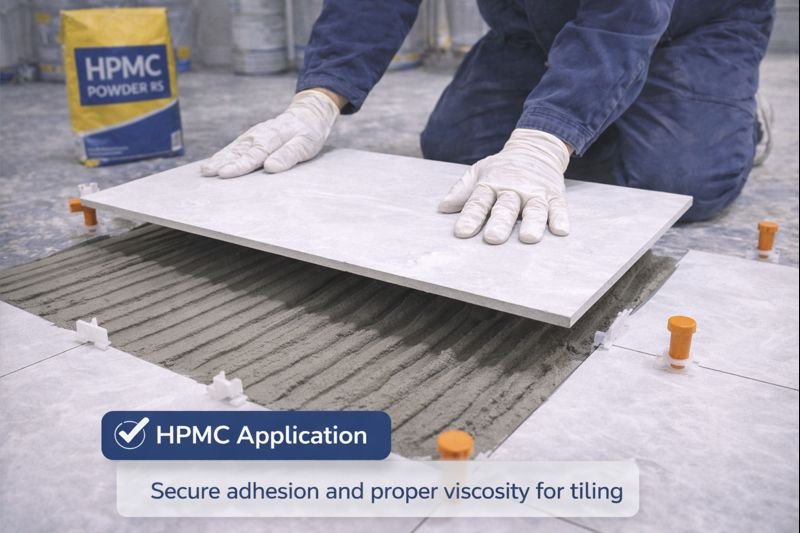

For tile adhesives⁵, especially when setting large-format tiles on vertical surfaces, high viscosity (150,000-200,000 mPa·s) creates strong initial grab that prevents those heavy tiles from sliding down. The hydroxypropyl methylcellulose⁶ forms a gel-like network that resists gravity while maintaining enough water in the system for proper cement hydration. I always tell customers to consider their largest tile size when selecting viscosity - bigger tiles need higher viscosity grades.

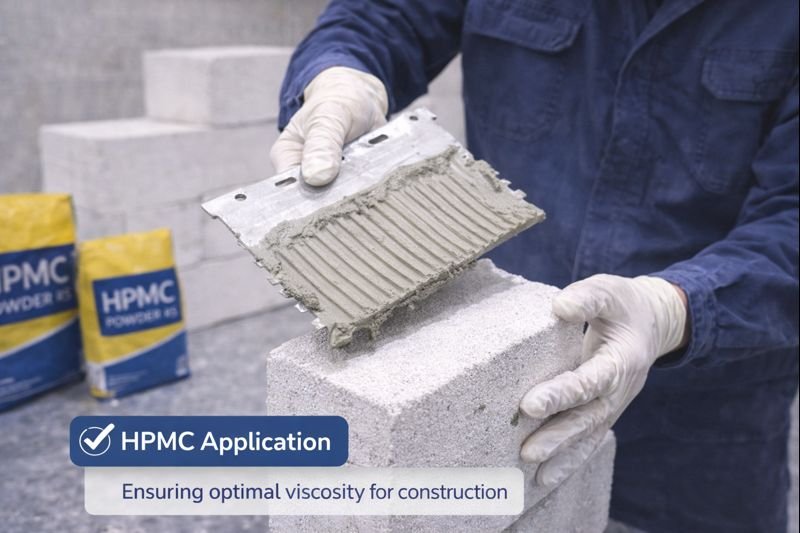

Renders and plasters work best with moderate viscosity (15,000-40,000 mPa·s) because they need to be workable enough to spread evenly but stable enough to hold their position. Too high viscosity makes the material drag and creates an uneven finish; too low and it sags or slumps. The sweet spot allows for good workability while maintaining enough body to hold in place until setting begins.

For self-leveling compounds³, the requirements flip entirely. Here, low viscosity HPMC (400-5,000 mPa·s) is essential because the material needs to flow freely to create a perfectly level surface. The HPMC still provides crucial water retention to prevent premature drying, but without impeding flow properties. I've seen contractors mistakenly use medium-viscosity HPMC in self-leveling applications, resulting in compounds that require manual leveling - defeating the entire purpose of the product!

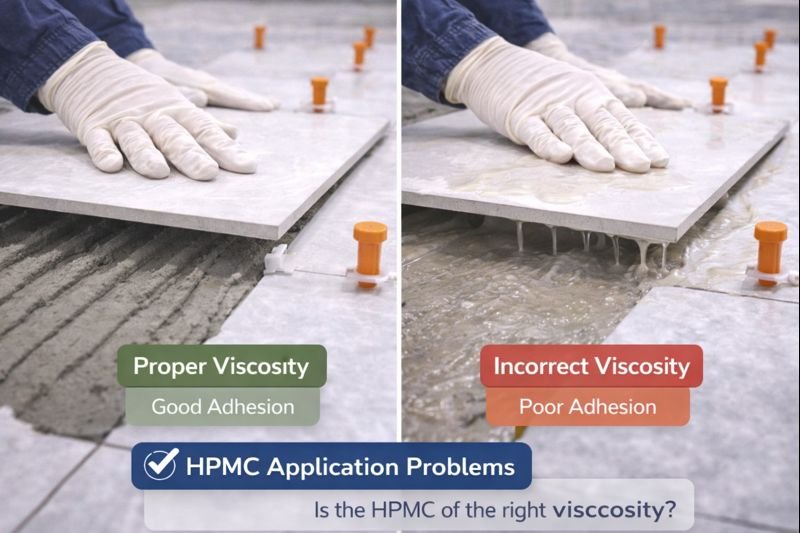

What Are the Common Mistakes When Selecting HPMC Viscosity?

Pain: Many contractors waste money on expensive high-viscosity HPMC when they don't need it, or struggle with application problems that could be easily solved with the right grade.

The biggest mistake is following the "higher is better" myth. This leads to unnecessarily difficult application, poor finish quality, and wasted money. Another common error is not accounting for other ingredients like cellulose ethers⁷ and redispersible powders that affect the final viscosity.

I've witnessed numerous costly mistakes in my years of consulting with construction material manufacturers. One pattern emerges repeatedly: companies overspecifying viscosity requirements without understanding the complete formulation dynamics.

A common misconception is that viscosity grade directly correlates with quality or performance. This leads many to automatically choose the highest viscosity they can afford, creating unnecessary application problems. I recall visiting a customer who struggled with their skim coat formulation - workers were complaining about arm fatigue and poor finishes. Their formula used 150,000 mPa·s HPMC when 80,000 would have been perfect. The switch not only improved application but saved them significant cost per ton.

Another frequent mistake is not considering how other ingredients affect working properties. Redispersible polymer powders, for instance, contribute significantly to viscosity build. Companies often overlook this interaction, resulting in formulations that become excessively thick when combining high-viscosity HPMC with these polymers. Similarly, the presence of other cellulose ethers like CMC can compound viscosity effects.

Temperature conditions at application sites also play a crucial role many formulators overlook. HPMC behaves differently in cold versus hot conditions, and viscosity selection should account for your target market's climate. I worked with a Middle Eastern customer whose formulation performed perfectly in laboratory testing but failed in field applications because the high ambient temperature accelerated the viscosity development beyond workable limits.

Here's another important consideration: mixing intensity affects how quickly HPMC develops its full viscosity. High-shear mixers will activate HPMC more completely than hand mixing, meaning the same grade might perform differently depending on your customers' mixing methods. Testing under actual application conditions is always essential before finalizing your viscosity selection.

Conclusion

Choosing the right HPMC viscosity is all about matching the grade to your specific application needs, not blindly going for higher viscosity. Balance anti-sagging properties with workability for optimal results in your construction projects.
